AEL-100

Medical Exam Light

Higher fidelity, more flexibility and possibilities stationary and yet flexible bright and yet homogeneous

ENT
Plastic surgery
GYN
Family
Dermatology
Outdoors
Gynecology and Obstetrics
Emergency rooms

Brighter, Cost Savings and Less Waste
1 white 3W LED,typical light output and pinpoint accuracy.
Life time up to 50,000 hours.High Illuminance 70,000 Lux at
200MMworking distance.
Less energy consumption.
No bulb replacement.
Authentic Color Rendering

Adjustable Spot Size
Spot size can be adjusted in a diameter between 15mm to 220mm to suit any situation at wide-range working distance 200mm to 1000mm.
Easy to clean.

Distance	200mm	300mm	400mm	500mm	600mm	800mm	1000mm
Lux max	70,000	30,000	15,000	9,500	6,500	3,500	2,300
Circle of light max∅	45mm	65mm	90mm	110mm	135mm	190mm	220mm
Circle of light min∅	15mm	18mm	20mm	25mm	27mm	35mm	43mm

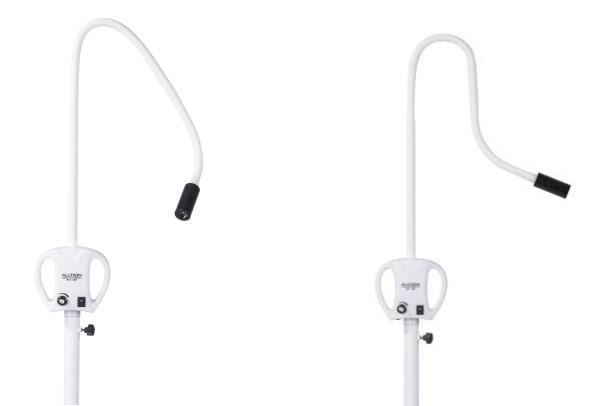

Flexible Goose Neck

Extremely flexible goose neck can be fixed in the chosen position and stopped accurately without spring back.
Two-segment goose neck design could be bent radius to any angle and in all directions.

A Variety Of Mounting Options available

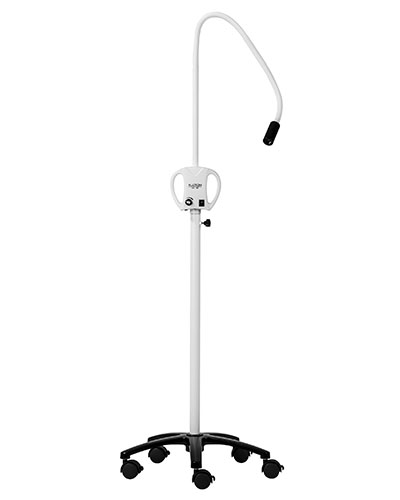

Mobile stand. Easily to be moved due to 5 low friction lockable universal castors.

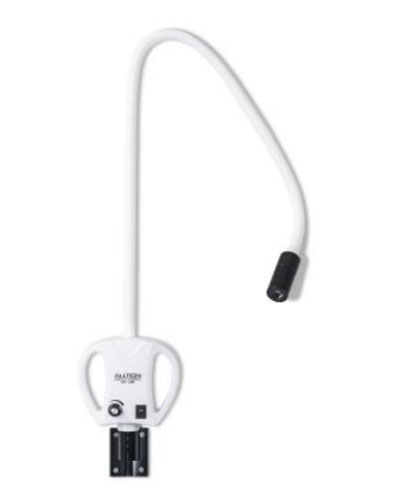

Wall mount. Quickly to be mounted on conventional walls.

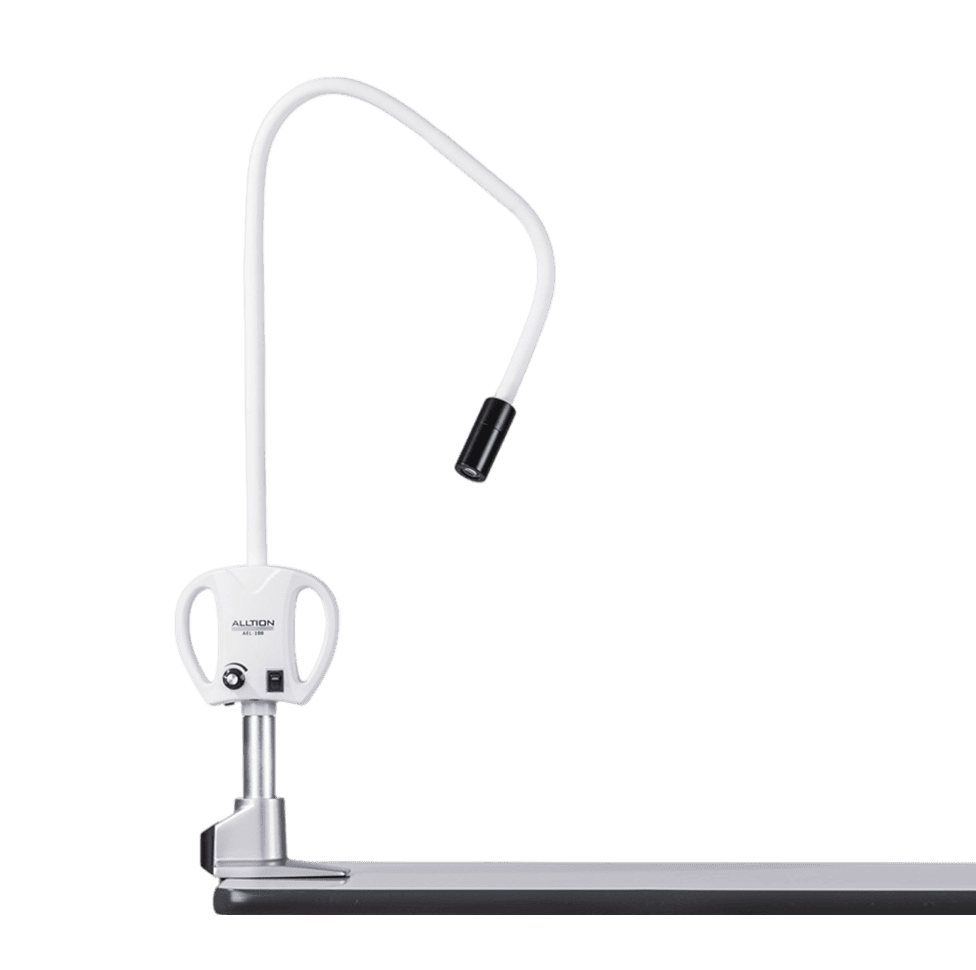

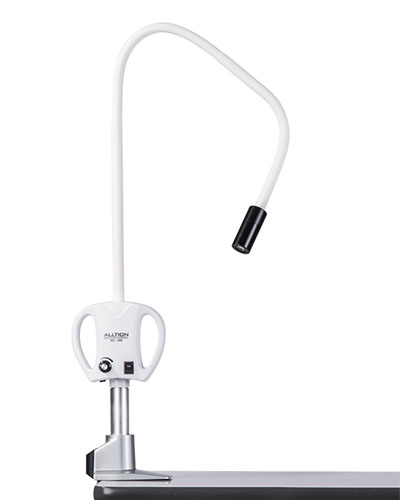

Table Mount. Simply to be mounted through universal clamp.

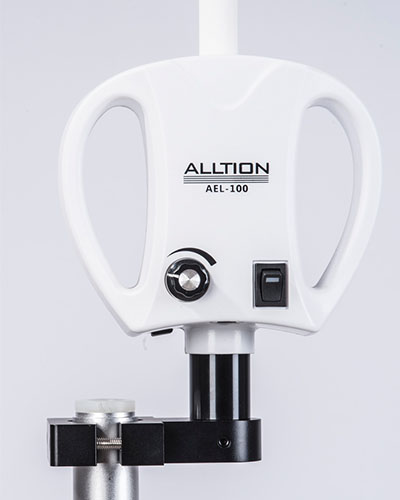

Pole Mount. Flexible clamping at any suitable space circular pole, adjustable clamping diameter (∅25- ∅40 mm)
