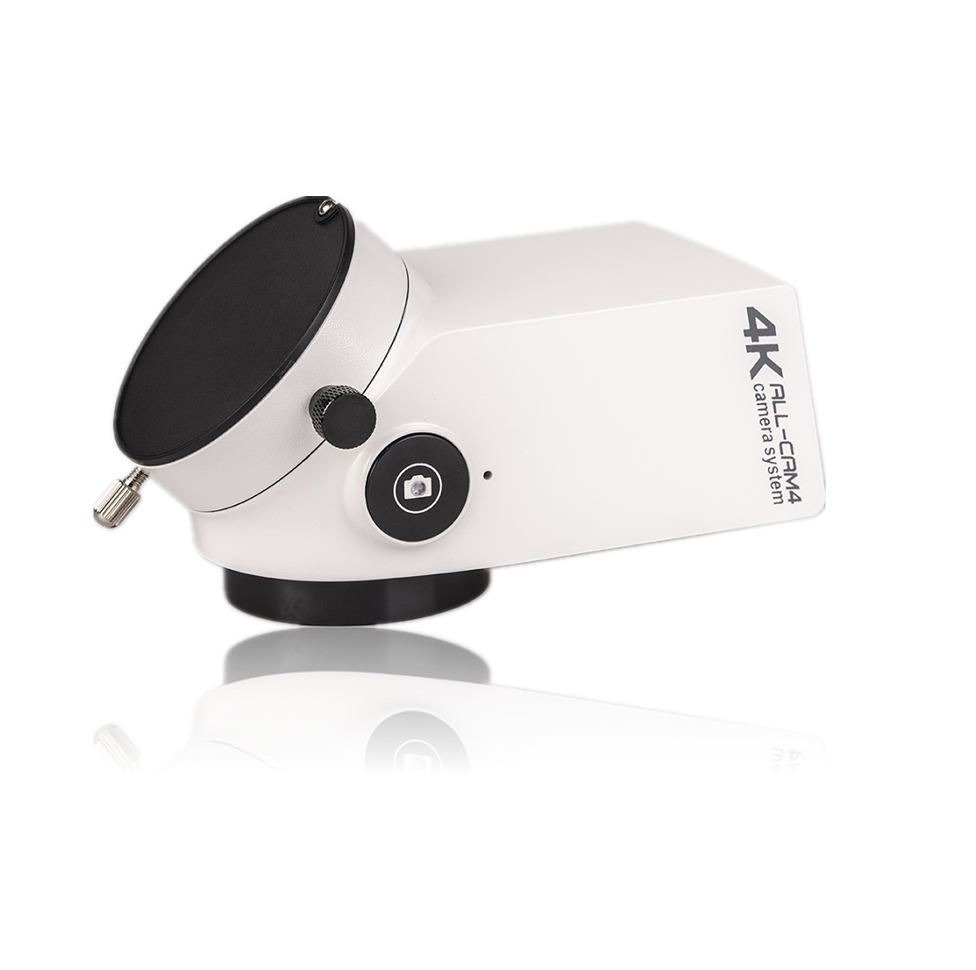

ALL-CAM4

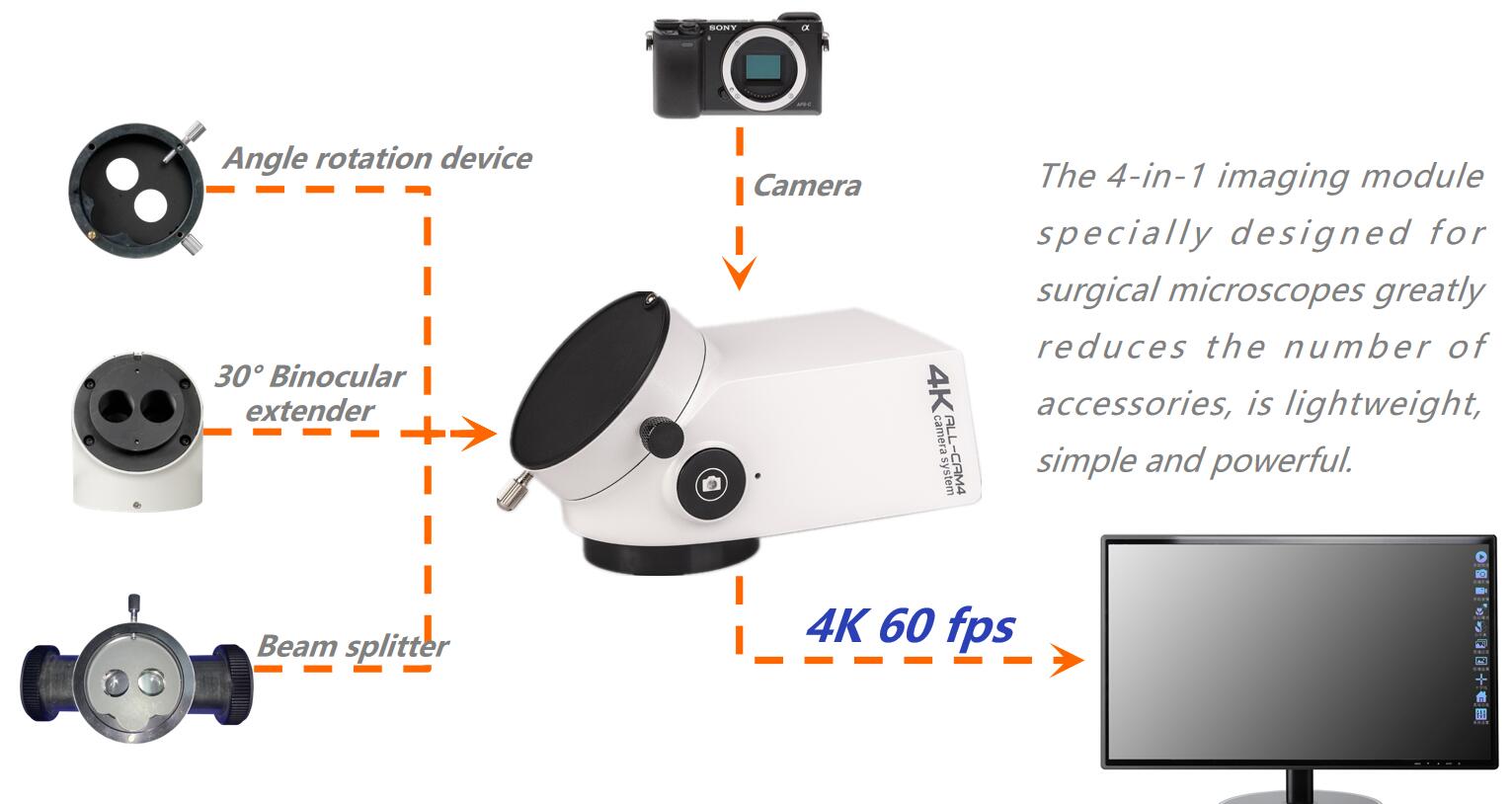

The 4-in-1 imaging module specially designed for surgical microscopes greatly reduces the number of accessories, is lightweight, simple and powerful.

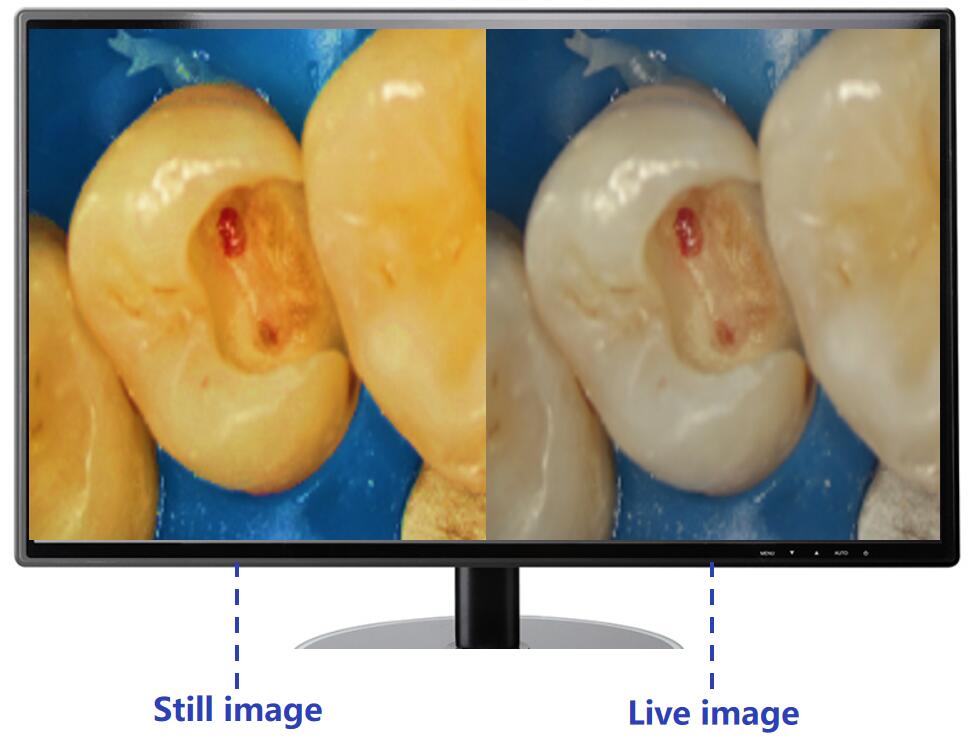

The same screen photo and live image/photo can be compared.

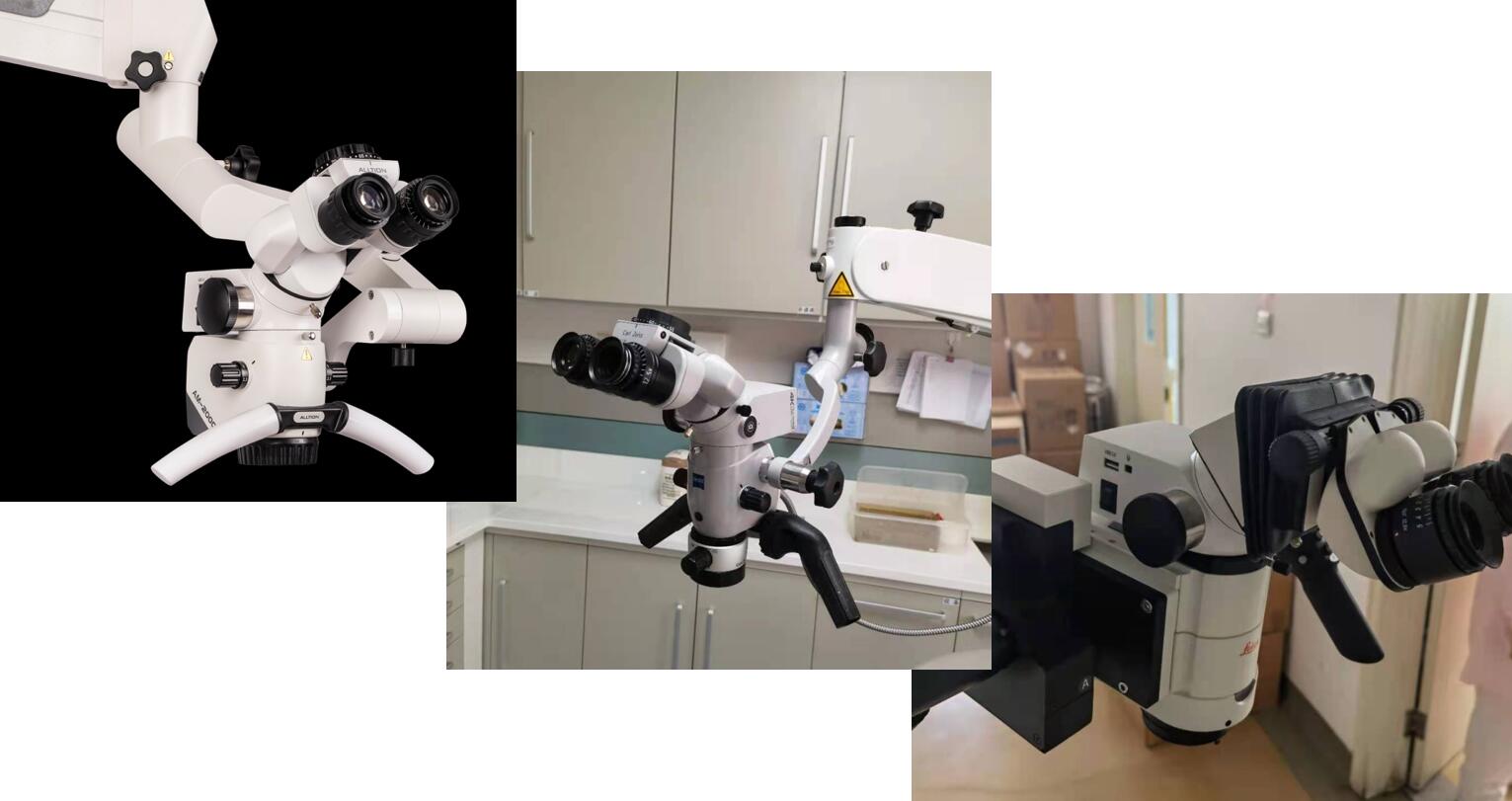

Can match different brands of surgical microscopes, including ALLTION, Zumax, Zeiss, Leica, etc.

Senor	SONY high-performance CMOS, low noise, high sensitivity, true colors
Interface	HDMI2.0 1pc
	USB2.0 1 pc and USB3.0 1 pc

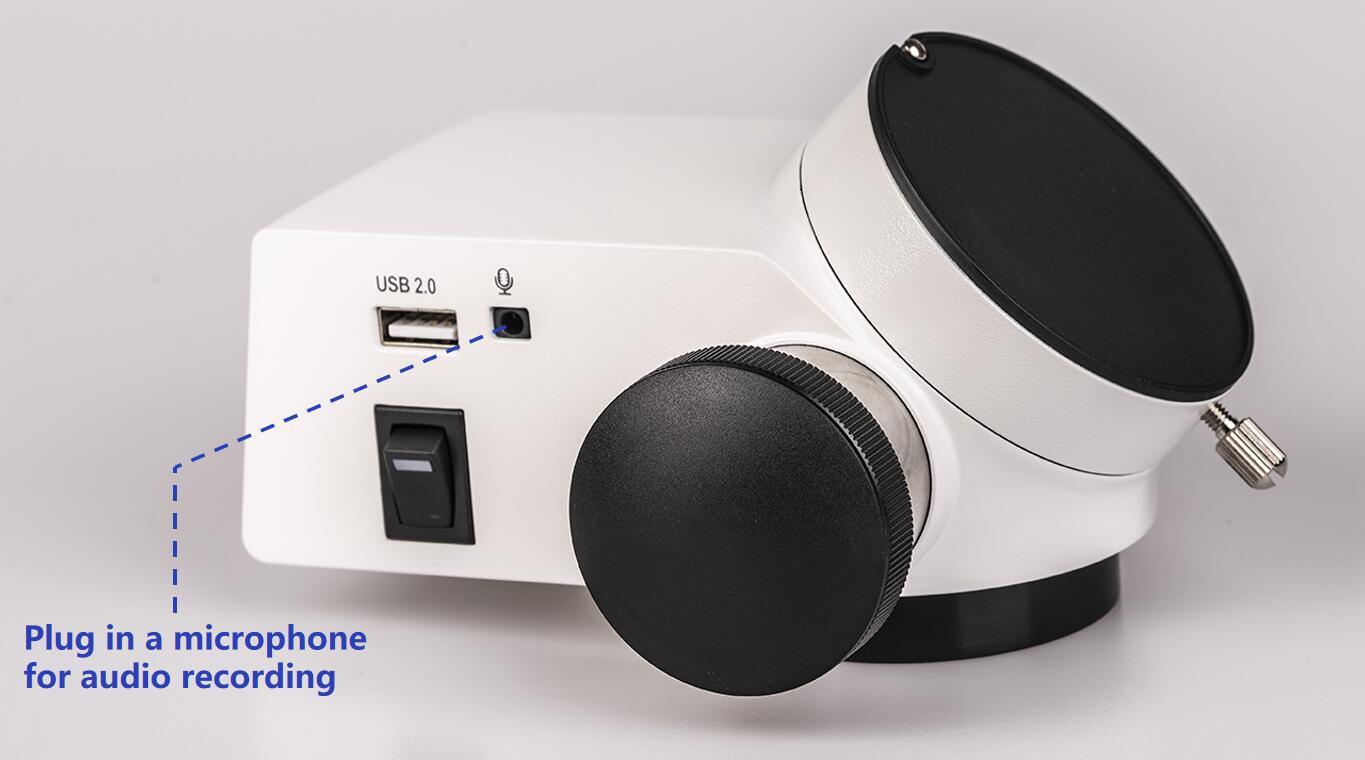

	3.5 audio interface 1pc (for sound recording)
Resolution	4K（3840 x 2160） 60FPS (16：9)
Storage	Connect external USB flash disk (support FAT32 and NTFS formats); picture: JPG format; video: MP4 format
WIFI	Built-in WIFI function, it can transmit images
Camera split ratio	2:8
Beam split ration	2:8; (optional 5:5)
Video resolution	4K 30FPS, 1080P 30FPS
Picture resolution	8M(3840*2160)

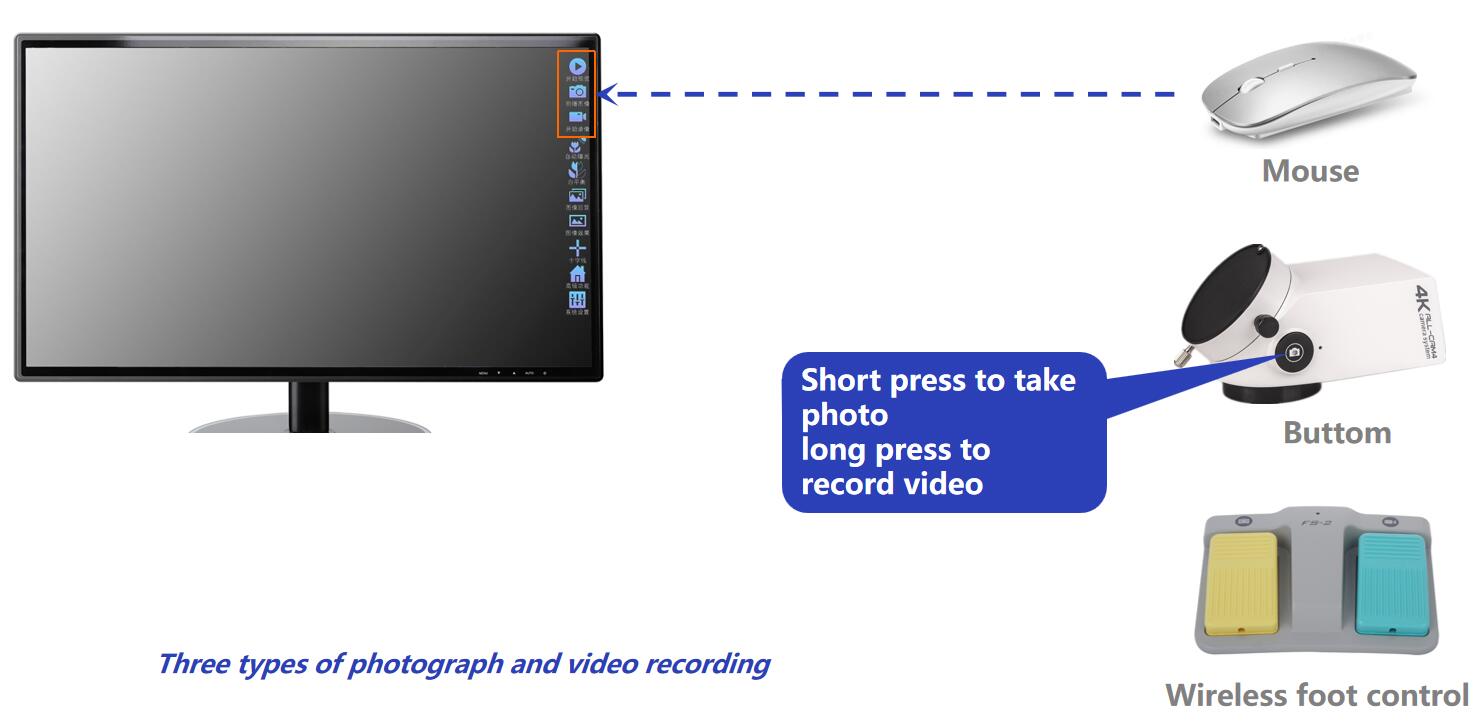

Basic functions	Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve
Image effect	Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition, HDR and system setting
Advanced functions	Horizontal flip, vertical flip, zoom out, zoom in, AOI and image comparison
